General Information

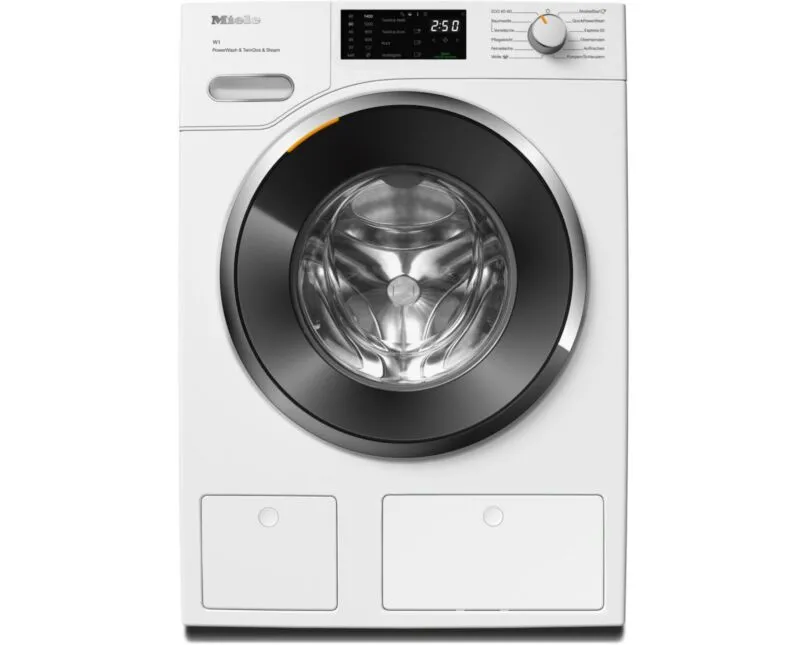

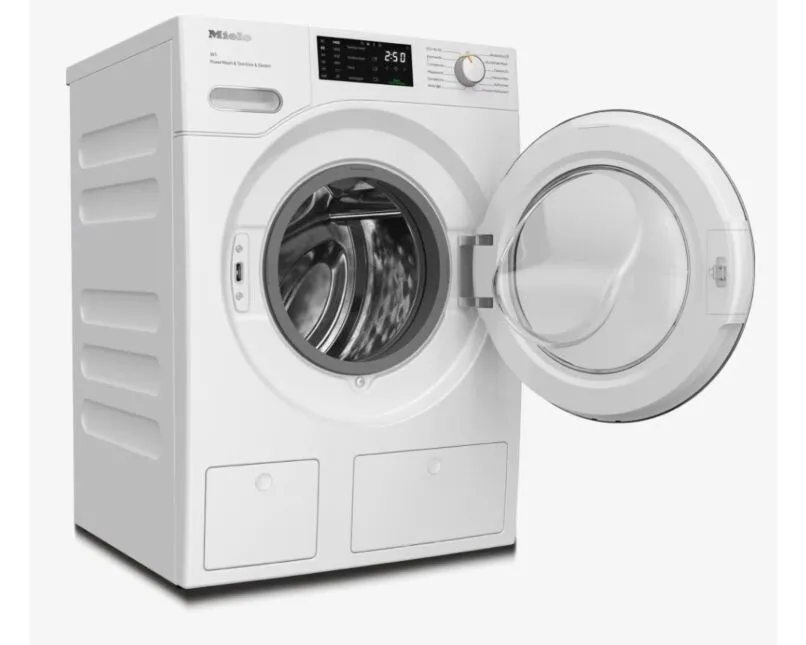

Model Name: WWG880 WPS PWash & TDos & Steam
Manufacturer Catalog Number: 12703660
EAN Number: 4002516856467
Marketing Class: Platinum

---

Installation

Stackable: Yes
Side-by-Side Installation: Yes
Under-counter Installation: Yes
Door Hinge: Right

---

Construction

Product Line: W1 White Edition
Appliance Type: Front-loading washing machine

---

Spin Performance

Maximum Spin Speed: 1400 rpm
Rinse Hold: Yes
Without Spin Function: Yes

---

Design

Appliance Color: Lotus White
Control Panel Color: Lotus White
Door Design: Obsidian Black with chrome ring
Rotary Dial Color: Lotus White / Chrome trim
Control Panel Design: 5° angled

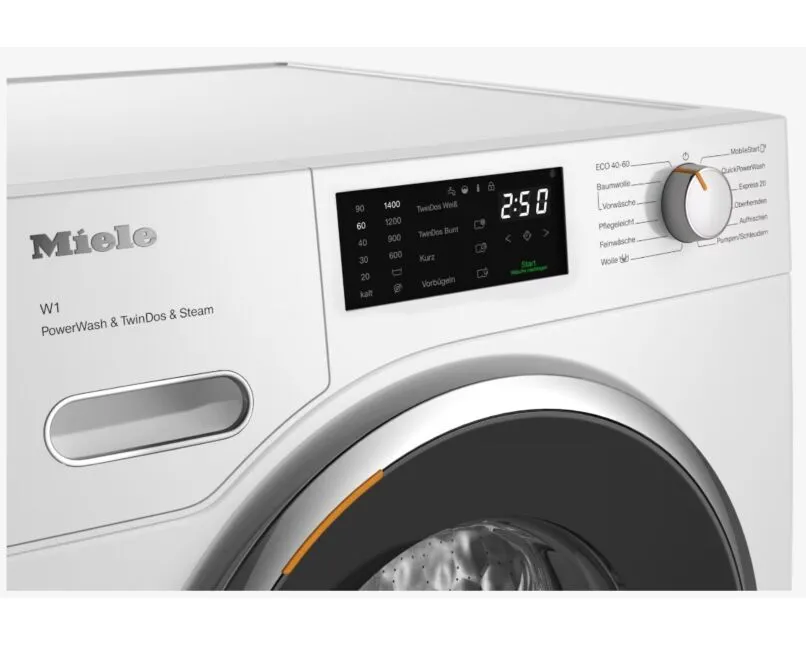

Control Type: Rotary dial
Display: DirectSensor White, 7-segment

---

Cleaning Performance

PowerWash innovative washing technology: Yes
TwinDos automatic detergent dispensing: Yes
CapDosing portion-based detergent system: Yes

---

Laundry Care

Honeycomb Drum: Yes
Load Capacity: 9 kg

---

Convenience Features

AddLoad (add laundry during cycle): Yes
Networking with Miele@home: Yes
Delay Start: Up to 24 hours
Remaining Time Display: Yes
Program Progress Display: Yes
AutoClean detergent drawer: Yes

---

Washing Programs

• Refresh (Steam)
• ECO 40–60
• QuickPowerWash
• Cotton
• Cotton with Pre-wash
• Easy-care
• Delicates
• Shirts
• Wool (Hand-wash)
• Quick 20
• Drain / Spin

---

Efficiency & Sustainability

Energy Efficiency: 20% better than the A-class limit (52)
Energy Efficiency Class: A
Energy Consumption per 100 cycles: 40 kWh
Water Consumption per cycle: 50 L
Spin Efficiency Class: B
Airborne Noise Emission Class (Spin): A
Noise Level during Spin: 72 dB(A)
Program Duration (ECO 40–60 at rated capacity): 229 minutes

Energy Consumption

• Off mode: 0.40 W
• Networked standby: 0.80 W

Additional Efficiency Features

• Cold wash and 20°C washing option
• Automatic load control
• Water flow meter
• Foam control system
• ProfiEco motor

---

Additional Washing Options

• Short cycle
• Steam pre-ironing
• Acoustic signal

---

Safety

Water Protection System: Waterproof System (WPS)
Child Lock: Yes
PIN Code Lock: Yes
Optical Interface: Yes

---

Technical Specifications

Drain Hose Length: 1.50 m

Dimensions

• Width: 596 mm
• Height: 850 mm
• Depth: 643 mm
• Dimensions (H × W × D): 850 × 596 × 643 mm
• Depth with door open: 1077 mm

Weight: 80 kg

Electrical Data

• Total Connected Load: 2.100–2.400 kW
• Voltage: 220–240 V
• Fuse Rating: 10 A
• Frequency: 50 Hz

Water Inlet Hose Length: 1.60 m
Power Cable Length: 2 m

---

Included Accessories

Voucher for 5 cartridges of Miele UltraPhase: Yes
3 Capsules: Yes
UltraPhase 1 + 2: Yes
